| Parameter name | Specific parameter |

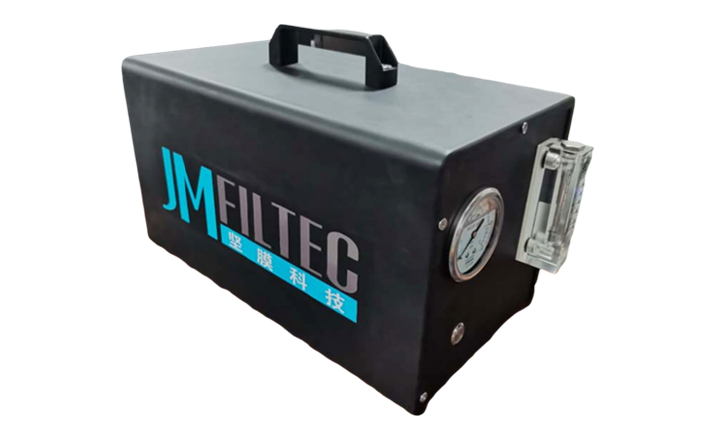

| Tubular membrane small test device dimensions | L200*W370*T200 mm |
| Membrane dimensions | Ф40x250 mm |
| Membrane material | SiC |
| Filtration accuracy | 0.1 μm |
| Effective membrane area | 0.117 m2 |
| Pure water flux | 3000 LMH |
| Operation mode | Internal pressure |
| Filtration mode | Cross flow filtration/Dead end filtration |
| Operation pressure | ≤0.3 MPa |
| Maximum trans-membrane pressure difference | 0.2 MPa |
| PH range | 0-14 |
| Operation temperature | 5℃-45℃ |
| Oil tolerance | ≤200 mg/L |
| Allowed turbidity | ≤3500 NTU |
| Produced water turbidity | ≤0.2 NTU |
| Micro-particles（>0.2µm） | 100% removal |
| Suspended solids | ≤1 mg/L |
