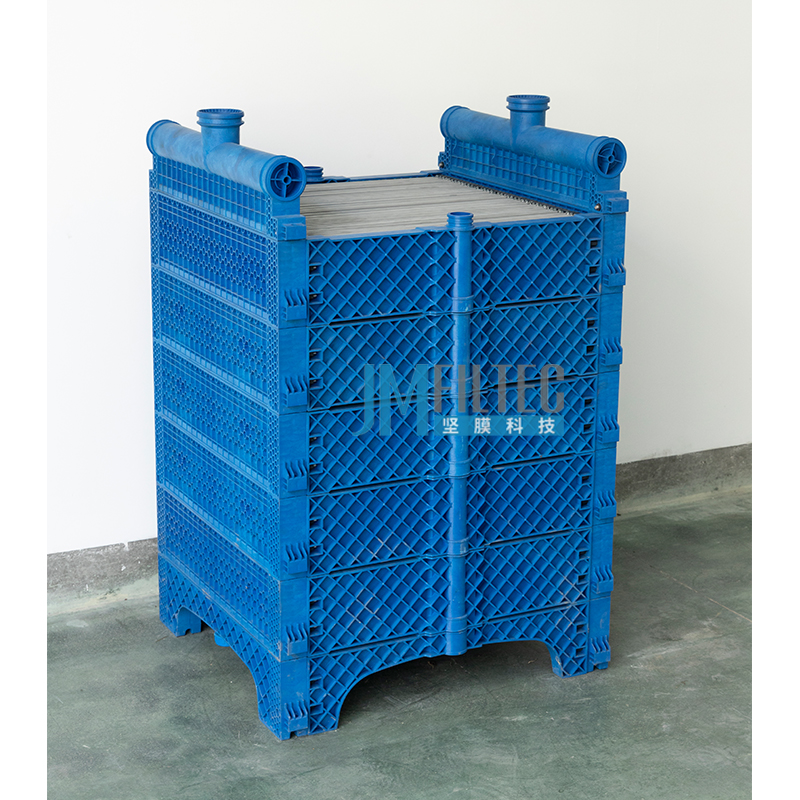

This module is a chemical and temperature resistant Ultra-Filtration (UF) ceramic membrane filters for solid-liquid separation. It can be used in various sources of contaminated water.
The technology is well used in the following applications:
▪ Drinking water from ground- and surface water sources
▪ Brackish water and seawater reverse osmosis pre-filtration
▪ Municipal and industrial wastewater treatment
▪ Mining wastewater treatment
▪ Oily wastewater treatment
▪ Produced water treatment
▪ Scrubber wastewater for marine scrubbers
▪ Recovery of backwash wastewater from sand filters
▪ Sludge thickening of activated sludge
▪ Hot water filtration
▪ Others challenging industrial waters
With an average filter pore size of 0.1 micron the UF membrane acts as a physical barrier to removal any suspended solids from the water, like:
▪ Sand particles, silt and colloidal silica
▪ Metal oxides, like iron and manganese oxides
▪ Pollen, Germs and bacteria
▪ Algae
▪ Oil and grease
▪ Colloidal fractions
▪ Chlorinated biphenyl
▪ TEP (Transparent Exopolymer Particles)
▪ EPS (Extra polymeric Substances)
▪ Others
Ultra-filtration technologies with a pore size of 0.1μm are commonly understood as filtration solutions remove suspended solids such as clay and silt, pollen, algae, precipitated metal oxides as well as fractions of colloids. They are also a physical barrier for germs and bacteria and are classified as disinfection solution with typical log removal value (LRV) above 5.

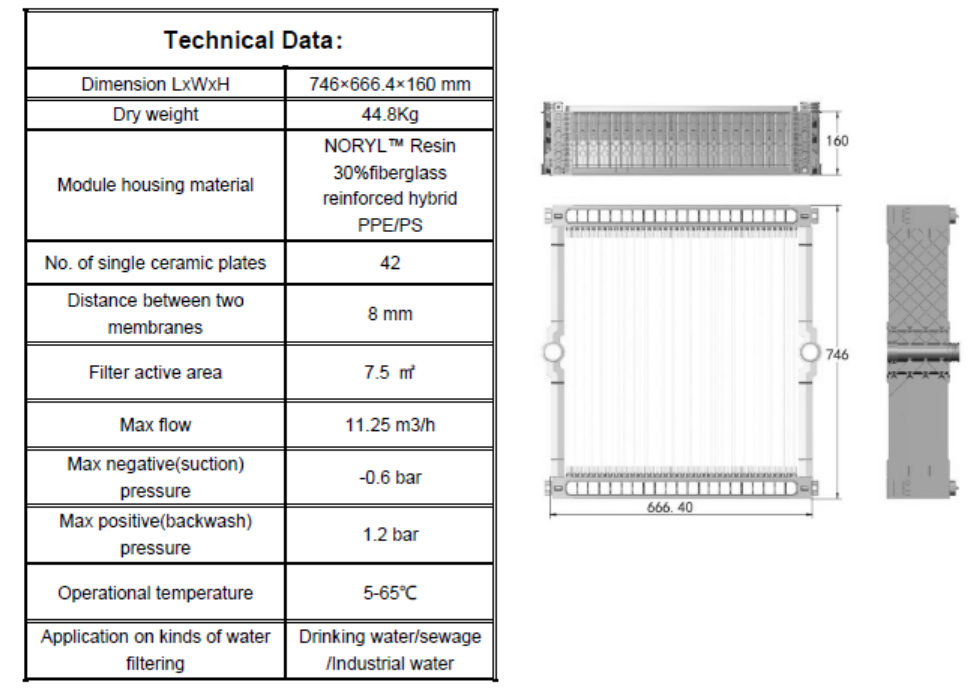

Module Dimension
Membrane module model number JMfiltec-SICFS-42 is our standard specification for most applications. Its dimensional information as below,
Module specialities:
1. Membrane modules are filled with flat membrane elements and are suitable for
submerged ultra filtration.
2. Multi-diaphragm configuration, replaceable diaphragms Internal integrated water production channel
3. The membrane module shell is entirely made of glass fiber reinforced resin (does not
contain any steel parts)
4. Suitable for challenging industrial waters such as groundwater, seawater, surface
water, MBR, TSE etc.
5. High-throughput operation, up to 1200LMH
