| Parameter name | Specific parameter |

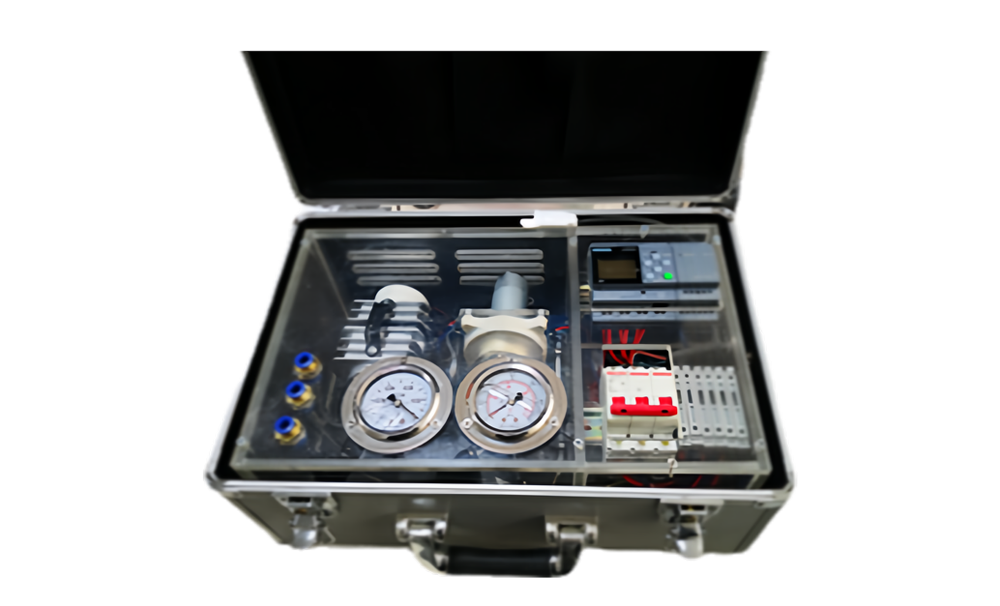

| Flat sheet membrane small test device dimensions | L445*W335*T195 mm |
| Membrane dimensions | Customizable |
| Membrane material | SiC |
| Filtration accuracy | 0.1 μm |
| Effective membrane area | Customizable |
| Pure water flux | 1500 LMH |
| Operation mode | Immersion type |
| Filtration mode | Negative pressure suction |
| Max operation pressure | -0.07 MPa |
| Max backwash pressure | 0.2 MPa |
| Trans-membrane pressure difference | -40 kPa～-10 kPa |
| PH range | 0-14 |
| Operation temperature | 5℃-65℃ |
| Oil tolerance | ≤200 mg/L |
| Sealing method | O-ring seal |
| Fan air volume | 20 L/min |
| Filter pump and backwash pump flow rate (shared) |
The maximum flow rate of the pump is 84 L/h (the backwash flow rate can be set to 2-3 times the water production flow rate) |
| Backwash cycle | 10-30 min |
| Backwash time | 10-30 s |
| Backwash pressure | ≤0.12 MPa |
